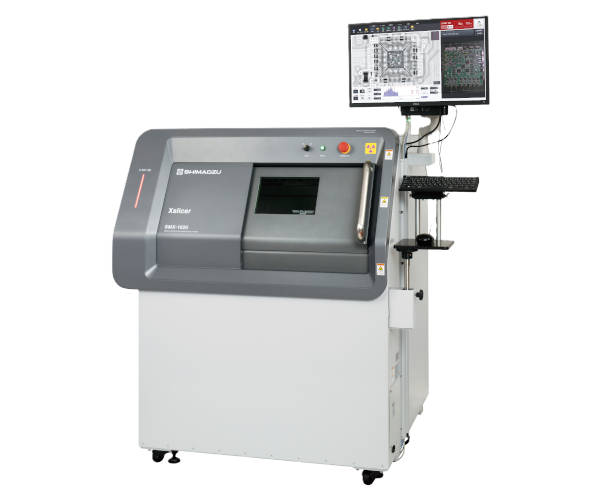

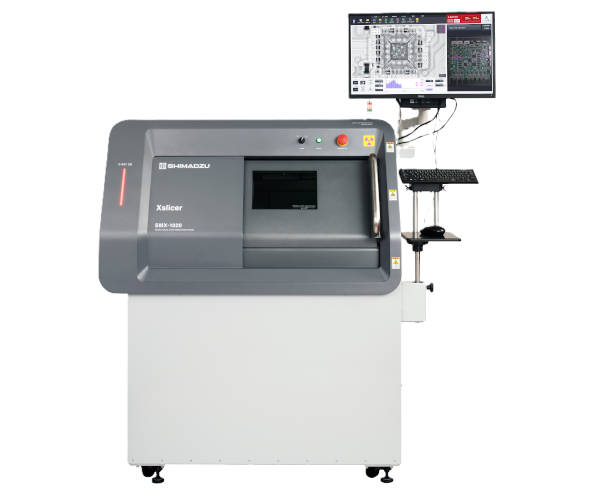

Shimadzu Xslicer™ SMX‑1010 / SMX‑1020 X‑Ray Inspection System
Microfocus X‑Ray & 3D CT Inspection Solution for Industrial Applications
Microfocus X-Ray Inspection System
Xslicer™ SMX-1010/1020
Equipped with a 90 kV microfocus X-ray generator and a high-resolution flat panel detector (FPD), the Xslicer™ SMX-1010/1020 delivers significantly enhanced image quality. With faster stage movement and detector acquisition speeds, it dramatically reduces inspection cycle times in mass-production environments. As an advanced 3D X-ray system, it allows users to visualize internal defects and perform dimensional evaluations seamlessly.
Equipped with a 90 kV microfocus X-ray generator and a high-resolution flat panel detector (FPD), the Xslicer™ SMX-1010/1020 delivers significantly enhanced image quality. With faster stage movement and detector acquisition speeds, it dramatically reduces inspection cycle times in mass-production environments. As an advanced 3D X-ray system, it allows users to visualize internal defects and perform dimensional evaluations seamlessly.
For more information, please visit:
Features
Specifications
Features
- Superior Image Clarity
Up to 3‑megapixel FPD with advanced HDR image processing for clear visualization of complex parts with mixed material densities. - High‑Speed Inspection
System startup in just 5 seconds and image acquisition speeds up to 4× faster than previous models, increasing throughput for production lines. - Seamless 3D CT Integration
Smooth transition to 3D X‑ray CT inspection with fully automated calibration, reducing setup time by up to 80%. - Intuitive Operation
Supports high‑resolution panoramic imaging up to 32 MP and a user‑friendly interface with precise “click‑and‑move” sample positioning.
Specifications
| Xslicer SMX-1010 | |
| Spatial Resolution | Equivalent to 5μm on the JIMA RT RC-05 micro chart (theoretical value) |
| (Min. 0.1 modulation transfer function (MTF) for 7μm on the JIMA RT RC-05 micro chart on a carbon plate) | |
| Maximum sample size | 350 × 450 mm max. 100 mm height max. 5 kg max. |
| Fluoroscopic Inspection Stroke | Tilt: 60° |
| X-Ray Output | Maximum Tube Voltage: 90 kV Maximum Tube Current: 250μA Rated Output: 10 W |
| Detector | Approximately 1.4 million pixels |
| Fluoroscopy FOV (on Carbon Plate) | 1.9 mm (vertical) × 2.2 mm (horizontal) to 38 mm (vertical) × 43 mm (horizontal) |
| Rated Output | Single Phase 100 VAC to 240 VAC ±10 % 50/60 Hz, 0.5 kVA |
| Weight | 700 kg |
| Operating Environment Conditions | Ambient Temperature: 10 to 30 °C Ambient Humidity: 40 to 80 % RH (no condensation) |
| External Leakage Dose | 1μSV/h or less |
| Xslicer SMX-1020 | |
| Spatial Resolution | Equivalent to 5μm on the JIMA RT RC-05 micro chart (theoretical value) |
| (Min. 0.1 modulation transfer function (MTF) for 7μm on the JIMA RT RC-05 micro chart on a carbon plate) | |
| Maximum sample size | 350 × 450 mm max. 100 mm height max. 5 kg max. |
| Fluoroscopic Inspection Stroke | Tilt: 60° |
| X-Ray Output | Maximum Tube Voltage: 90 kV Maximum Tube Current: 250μA Rated Output: 10 W |
| Detector | Approximately 2.8 million pixels |
| Fluoroscopy FOV (on Carbon Plate) | 2.2 mm (vertical) × 3.8 mm (horizontal) to 42 mm (vertical) × 76 mm (horizontal) |
| Rated Output | Single Phase 100 VAC to 240 VAC ±10 % 50/60 Hz, 0.5 kVA |
| Weight | 700 kg |
| Operating Environment Conditions | Ambient Temperature: 10 to 30 °C Ambient Humidity: 40 to 80 % RH (no condensation) |
| External Leakage Dose | 1μSV/h or less |
