Xslicer™ SMX‑6010 X‑Ray Inspection System
High‑Performance Industrial X‑Ray & 3D CT Inspection Solution

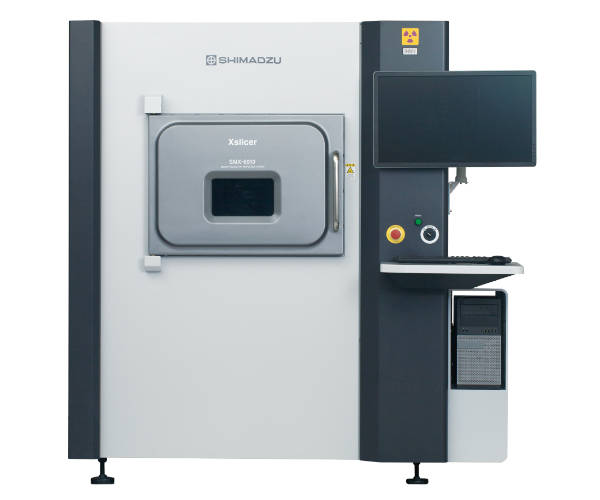

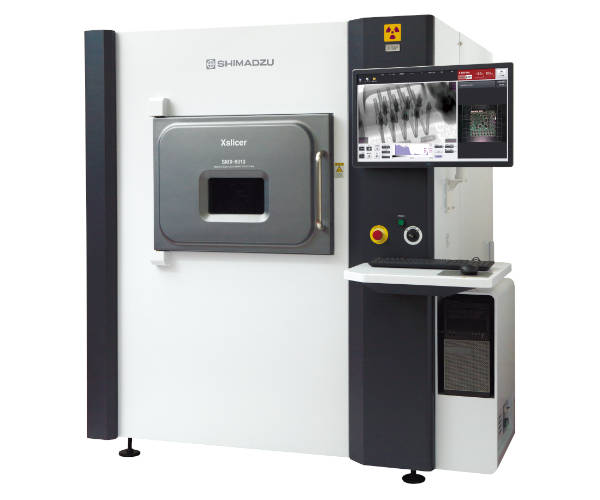

Xslicer™ SMX‑6010 – Microfocus Planar X‑Ray Inspection System
Designed for modern non-destructive testing (NDT), the SMX-6010 combines exceptional image clarity with a wide dynamic range. It serves as a premium industrial X-ray system for failure analysis and quality control in battery manufacturing and high-density assemblies. Its ability to switch between 2D fluoroscopy and 3D Computed Tomography (CT) makes it an essential tool for high-tech industrial environments.
Designed for modern non-destructive testing (NDT), the SMX-6010 combines exceptional image clarity with a wide dynamic range. It serves as a premium industrial X-ray system for failure analysis and quality control in battery manufacturing and high-density assemblies. Its ability to switch between 2D fluoroscopy and 3D Computed Tomography (CT) makes it an essential tool for high-tech industrial environments.
For more information, please visit:
Features
Specification
Features
- High‑Power 160 kV Open‑Type X‑Ray Tube
Enables penetration of thick or high‑density samples such as aluminum die‑cast parts, Li‑ion batteries, and multilayer PCBs. - Planar CT (PCT) Imaging
Seamless switching between 2D X‑ray inspection and 3D cross‑sectional CT imaging for non‑destructive internal analysis. - 3‑Megapixel Detector with HDR Technology
Combines a high‑resolution flat panel detector with Shimadzu’s unique HDR processing to produce high‑contrast images—even for samples with varying thickness. - Ultra‑High Resolution (1 µm)
Resolves fine details down to 1 micrometer, supporting advanced R&D, defect analysis, and microstructure inspection. - Flexible 5‑Axis Stage System
Tilt and rotation functions for both the sample stage and detector enable inspection from virtually any angle without repositioning the sample.
Specification
| Spatial Resolution | 1 µm (JIMA chart resolution) |
| Maximum sample size | 470 × 420 × 100 mm, max. 5 kg |
| Fluoroscopic Inspection Stroke | X: 460 mm, Y: 410 mm, Z: 100 mm, ±180° rotation, 60° tilt |
| CT Scan Range | X: 350 mm, Y: 350 mm |
| Laminographic Angle (CT Scan Angle) | 45° or 60° |
| X-Ray Output | Max. tube voltage: 160 kV, Max. tube current: 100 µA, Rated Output: 16 W |
| Detector | Flat panel detector |
| Fluoroscopy FOV (on Carbon Plate) | 0.75 mm (vertical) × 1.3 mm (horizontal) to 21 mm (vertical) × 38 mm (horizontal) |
| CT FOV (on Carbon Plate) | 3 to 30 mm (given 45° laminographic angle) / 3 to 14 mm (given 60° laminographic angle) |
| Power Requirements | 200 V AC ± 10 %, 1.5 kVA (ground resistance 100 Ω max.) |
| Weight | Approx. 2,450 kg |
| Operating Environment Conditions | Ambient temperature: 15 to 30 ℃, Ambient humidity: 35 to 80 % (no condensation) |
| External Leakage Dose | 1 µSv/h max. |
