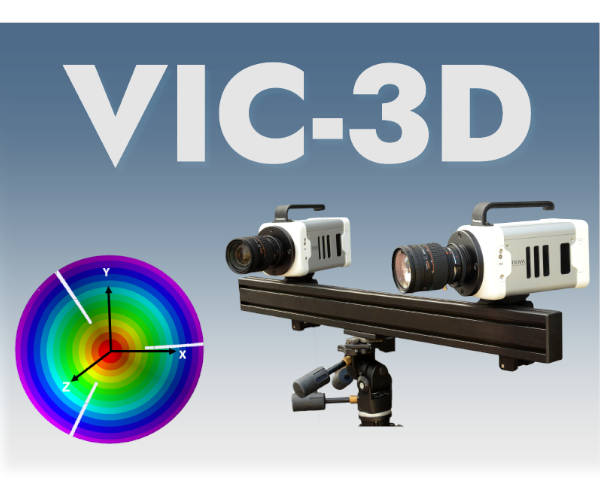

VIC-3D System
VIC-3D is a 3D Digital Image Correlation (DIC) system designed for non-contact measurement of full-field shape, displacement, and strain on a specimen’s surface. The system delivers precise 3D displacement and strain data across the entire area of interest, supporting both quasi-static tests and high-speed dynamic events.
Key Features
- Full-field 3D measurement: Capture complete 3D displacement and strain across the entire specimen surface.
- Non-contact testing: No physical interaction with the specimen, ensuring safe and interference-free measurements.
- Wide measurement range: Compatible with specimens from sub‑millimeter scale (<1 mm) to large structures exceeding 100 meters.
- High-speed capability: Supports ultra-high-speed imaging with frame rates up to 5 million fps, depending on system configuration.
- High strain resolution: Achieves strain resolution down to 10 µε, suitable for both micro‑strain and large‑deformation applications.
- Flexible configuration: System can be customized based on specimen size, field of view, and testing speed requirements.
- Turnkey solution: Delivered as a complete package including hardware, software, training, and technical support.
Application: Aerospace, Automotive, Vibration Testing, Composite Analysis, Structural Testing.
For more information, please visit:
System Specifications
| VIC-3D LS | VIC-3D QX | VIC-3D HS | VIC-3D UHS | |
| Camera Resolution | 2.3 MP – 45 MP | 12.3 MP | Up to 4 MP | 400 x 250 pixels |
| Frame Rate | 400 Hz – 16 Hz | Up to 335 Hz | Up to 500 KHz * | Up to 5 MHz ** |
| in-Plane Resolution | 1/200,000 • FOV | 1/200,000 • FOV | 1/100,000 • FOV | 1/50,000 • FOV |
| Out-of-Plane Resolution | 1/100,000 • FOV | 1/100,000 • FOV | 1/50,000 • FOV | 1/25,000 • FOV |
| Strain Resolution | down to 10 µℇ | |||
| Strain Range | from 0.005% to 2,000% | |||
| Analog Data Recording | Up to 32 inputs | Up to 16 inputs | 8 inputs | 10 MS/s / 4 inputs |
| Full-field Real-Time Analysis | Yes, up to 10 Hz | Yes, up to 10 Hz | n/a | n/a |
| VIC-Gauge 3D Real-Time Analysis (output of points, gauges, exiensonmeters, etc.) | Yes, up to 200 Hz Up to 4 real-time< analog output | Yes, up to 200 Hz Up to 4 real-time< analog output | n/a | n/a |
| FFT Module | Available with VIC-3D Fatigue & Vibration Module | Available | Available | n/a |
