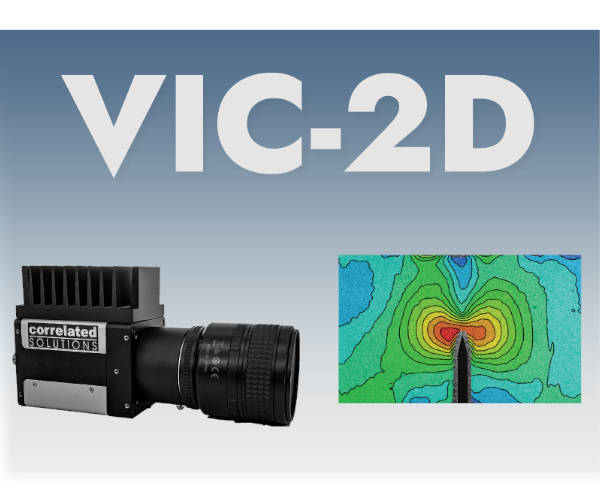

VIC-2D System
VIC-2D is a dedicated 2D Digital Image Correlation (DIC) system designed for planar specimens, providing non-contact measurement of in-plane displacement and full-field strain. The system automatically generates time‑based strain contour maps, enabling fast identification of strain concentrations across the specimen.
Key Features:
- Full field 2D measurement: Measures displacement and strain across the entire Area of Interest (AOI).
- Non-contact testing: Eliminates the need for extensometers or physical sensors attached to the specimen.
- Sub-micron displacement resolution: Tracks in-plane displacement with resolution below micrometer.
- Wide strain range: Supports strain measurements from 0.005% to over 2,000%.
- High-speed capability: Compatible with ultra-high-speed imaging up to 5 MHz, depending on configuration.
- Advanced visualization tools: The integrated iris graphics engine enhances visualization, reporting, and data export.
- Microscale compatibility: Can be paired with microscopes, AFM, or SEM for micro-scale material research.
For more information, please visit:
System Specifications
| VIC-2D LS | VIC-2D QX | VIC-2D HS | VIC-2D UHS | |
| Camera Resolution | 2.3 MP – 45 MP | 12.3 MP | Up to 4 MP | 400 x 250 pixels |
| Frame Rate | 400 Hz – 16 Hz | Up to 335 Hz | Up to 500 KHz * | Up to 5 MHz ** |
| in-Plane Resolution | 1/200,000 • FOV | 1/200,000 • FOV | 1/100,000 • FOV | 1/50,000 • FOV |
| Strain Resolution | down to 10 µℇ | |||
| Strain Range | from 0.005% to 2,000% | |||
| Analog Data Recording | Up to 32 inputs | Up to 16 inputs | 8 inputs | 10 MS/s / 4 inputs |
| VIC-Gauge 2D Real-Time Analysis (output of points, gauges, exiensonmeters, etc.) | Yes, up to 200 Hz Up to 4 real-time< analog output | Yes, up to 200 Hz Up to 4 real-time< analog output | n/a | n/a |
| FFT Module | Available | Available | Available | n/a |
