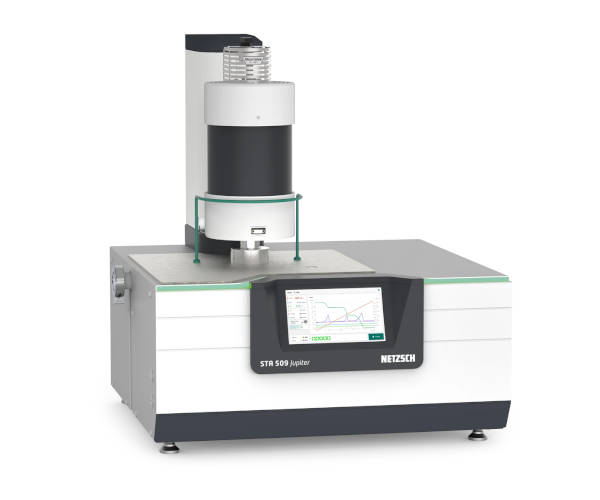

STA 509 Jupiter® Classic
The STA 509 Jupiter® Classic presents a compelling option for everyday, high-performance simultaneous thermal analysis, offering remarkable value at an accessible price. This adaptable instrument is equipped with a silicon carbide furnace capable of reaching 1600°C and differential scanning calorimetry (DSC) functions. It is well-suited for common applications such as assessing thermal stability, identifying phase transitions, studying oxidation/reduction reactions, and analyzing decomposition processes across a wide array of materials and industries. The STA 509 Jupiter® Classic consistently provides precise, accurate, and repeatable results, a testament to its robust design and advanced technology, all while maintaining an excellent price-to-performance ratio.
Specifications
Specifications
Temperature range | RT – 1600°C |
Temperature resolution | 0.001K |
Furnace | SiC furnace |
Heating rate | 0.001 – 50 K/min |
Balance resolution over the entire weighing range | 0.1 μg |
Maximum sample load | 35 g |
Sample volume (max.) | + TGA: 10 ml + DSC: 0.19 ml + DTA: 0.9 ml |
DSC resolution (digital) | 1 μW for DSC sensor type S |
DSC enthalpy accuracy | 1% (for indium) |
Sensors | + TGA + TGA-DTA + TGA-DSC |
Vacuum-tight | 10-2 mbar |
Automatic sample changer (ASC) (optional) | 20 crucible positions |
Gas flow control | 3 mass flow controllers integrated for 1 protective and 2 purge gases (optional 4 MFC) |
