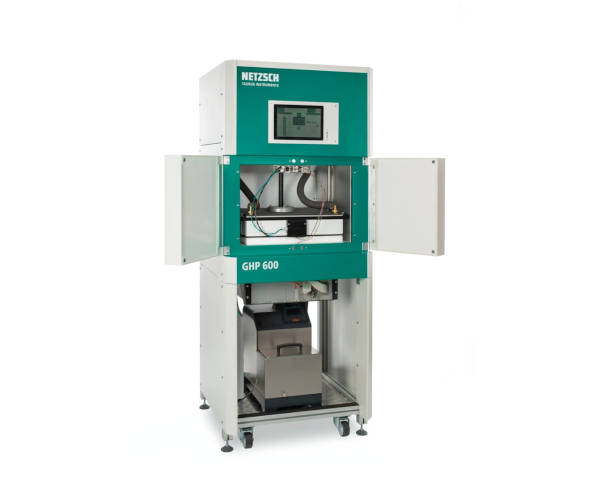

GHP 600
The GHP 600 series comprises a line of robust, cabinet-style instruments specifically designed for evaluating thicker specimens. These user-friendly devices integrate a single-board computer (SBC) running the Windows operating system, Lambda software, and a high-resolution color touchscreen display. For enhanced versatility and data management, the GHP 600 series features a comprehensive range of interfaces, including RS232, USB, and Gigabit Ethernet, facilitating seamless connection to peripheral devices and enabling rapid data transfer. Additionally, the ability to connect to an external PC empowers users with in-depth analysis of test results and the generation of comprehensive test reports.
Measuring device with guarded hot plate in accordance with ISO 8302, ASTM C177, EN 1946-2, EN 12664, EN 12667 and EN 12939
Measuring device with guarded hot plate in accordance with ISO 8302, ASTM C177, EN 1946-2, EN 12664, EN 12667 and EN 12939
For more information, please visit:
Specifications
Specifications
| Measuring range | 0.005 to 2.0 W/(m·K), depending on material and thickness |
| Specimen size (L x W) | 600 mm x 600 mm
variable, according to the dimension of the hot plate: 100 mm x 100 mm up to 300 mm x 300 mm |
| Specimen thickness (H) | 1x 15 mm to 200 mm (1-specimen measurement method)
2x 15 mm to 100 mm (2-specimen measurement method) |
| Temperature range | Cooling plate: -15°C to 60°C
Heating plate: -5°C to 70°C |
| Interface 1 | 1x RS 232,1x Gigabit Ethernet |
| Dimensions (H x W x D) | 186 cm x 85 cm x 85 cm |
| Power supply | 110 V – 230 V, 50/60 Hz |
| Weight | 214 kg |
