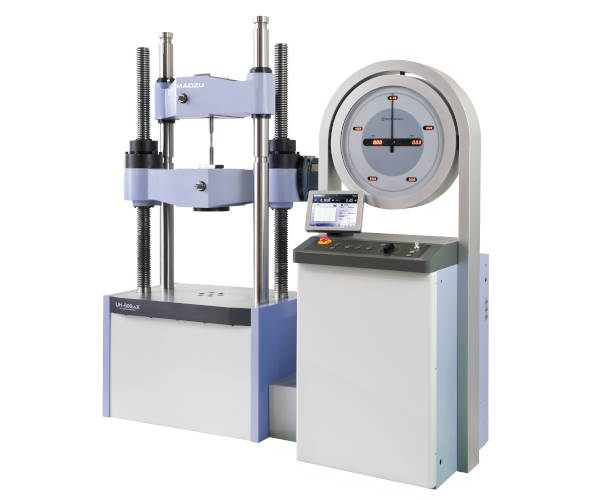

Shimadzu UH‑X / UH‑FX Hydraulic Universal Testing Machine
Heavy‑Duty Universal Testing Machines for Metals & Structural Materials
Hydraulic Universal Testing Machines – UH‑X / UH‑FX Series
This latest generation of universal testing machines combines robust performance with eco-friendly hybrid hydraulic technology. UHXh / UHFXh models with Energy-efficient design requiring up to 50% less hydraulic oil. The UHFX model simplifies specimen handling with front-opening hydraulic grips, ensuring reliable capture of strength changes during high-load tensile testing
This latest generation of universal testing machines combines robust performance with eco-friendly hybrid hydraulic technology. UHXh / UHFXh models with Energy-efficient design requiring up to 50% less hydraulic oil. The UHFX model simplifies specimen handling with front-opening hydraulic grips, ensuring reliable capture of strength changes during high-load tensile testing
For more information, please visit:
Features
Specification
Video
Features
- Semi‑auto tuning control for high‑precision stress and strain control (Complies with ISO 6892‑2009 and JIS Z2241 for metallic tensile testing)
- Extra‑large color LCD touch screen for improved visibility and intuitive operation
- Front‑opening hydraulic grips for safe specimen handling (UH‑FX only)
- Reduced hydraulic unit noise on UH‑FX: from 75 dB to 65 dB
- Requires up to 50% less hydraulic oil, lowering operating costs
- Ultra‑high‑speed data sampling ensures no sudden strength variations are missed
- Powered by advanced TrapeziumX software, with options for cycle testing, control testing, and concrete testing
- High reliability and comprehensive safety functions for confident operation
Specification
| UH-X Series | |
| Load capacity | 200, 300, 500, 1,000, 2,000, 3,000, 4,000 kN (7 types) |
| Capacity | 6 stages |
| Test control functions | Single, cycle, stress, strain, stroke 3 stage switching, concrete |
| UH-FX Series | |
| Load capacity | 300, 500, 1,000, 2,000, 3,000, 4,000 kN (6 types) |
| Capacity | 6 stages |
| Test control functions | Front-opening type hydraulic system |
